Fader Hub: How to Setup a Low-Latency Remote Collaboration Session

Fader Hub (Product Page) is our network mixing and streaming console software. As such it allows you (among other things) to play music remotely with a low latency. You can see a full presentation of the software on this page.

Here is a step by step tutorial to setup a session to play remotely with another musician through the Internet.

Overview

  1. Start a video chat with your correspondent
  2. Setup the audio connection in the Fader Hub app
  3. Play together & record

Step 1 : start a video channel with your correspondent

Fader Hub will take care of the audio connection only. So if you want to see the other musician(s), you must use another tool to have a video view.

This is not mandatory, but it helps to have a visual cue of what is happening the other side when you are playing. And it’s more fun to see each other too!

Any video capable tool will do the trick here :

  • Facebook Messenger video
  • Skype
  • Zoom
  • Facetime
  • WhatsApp
  • (Imagine your favorite video messaging app here)

To setup the Fader Hub connection, it also helps to have a way to communicate with your correspondent before the real time audio connection is established thru Fader Hub.

You can do it by phone or on a computer or prepare everything upfront by email, but we recommend having a direct video chat on your computer so that you have instant feedback, and all the communication is done in one place (and you can also share your screen if needed or record a video of your performance).

Step 2 : setup the audio connection in Fader Hub

To get the best results, you should connect your computer to your Internet router with an Ethernet cable. Wifi is way too unreliable and has too much latency for high quality real time audio.

  • Launch Fader Hub
  • Configure your audio interface in Fader Hub: we recommend connecting your instrument on one channel, and a microphone for your voice on another channel. Even if you don’t plan to sing, it will be easier to communicate this way.

Tip: use the same sampling rate and if possible similar buffer sizes on both machines
as it will help reduce the latency of the communication.

2.1 : Reception

  • Toggle RCV from N to Y
  • Set a Port number to receive date from your correspondent. Example: 8078
  • Toggle uPnP Fwd from N to Y: at this moment, Fader Hub will use the uPnP protocol to get your IP address automatically from your Internet box. If all goes well your IP address should be shown below the uPnP Fwd toggle switch. Your IP address will be in this format: aaa.bbb.ccc.ddd

IF YOU DON’T GET AN IP ADDRESS: it means that your Internet box does not support uPnP or it is not activated or the port number is not supported
IN THAT CASE: you can either try another port number, check the uPnP on your box (see your Internet provider) or get your IP address manually

  • Give your IP address to your correspondent vocally or type it in the chat you have opened in your video tool

2.2 : Emission

  • Toggle SEND from N to Y
  • Your correspondent must give you his IP address vocally or through the chat
  • Put the remote IP address from your correspondent in the IP field (see purple text in the image below)
  • Set the Port number to the one give by your correspondent to receive the audio . Example: 8010. The port number could be the same but for ease of setup, it is recommended to choose different numbers.
  • Click on YOUR NAME and type your name here so that you can easily be identified. In the images below YOUR NAME has been changed to Peter.

Your correspondent should follow the same procedure on his/her end.

At this point your correspondent name will blink. This is normal, it means the receiving buffer has to be increased. For example : 768

YOU CAN INCREASE THE RECEIVE BUFFER UNTIL THE CONNEXION IS STABLE

At this point you should have a high quality audio connection with your correspondent so you can mute the sound in your video tool (Facebook Messenger, Zoom, Skype, etc.).

In fact, as Fader Hub is way faster than the video tools to process audio, the sound you will hear in our software will to be out of sync with the video sound. This is totally normal. Not every software can process as fast as Fader Hub. 🙂

Step 3 : play & record

You should now be able to talk and jam with your correspondent with a high quality of sound.

Here are the three options you have to fine tune the audio quality:

  • In case of audio dropouts you can increase the reception buffer size:
  • You can also change the compression level to improve the connection. By default it is a the Lossless level:
  • Change the Packet size. For example to 256:

If all went according to plan
your should be playing through the Internet!

You can save all your settings so you don’t need to go through the whole process again next time you jam with the same correspondent:

For more info

For detailed instructions on how to setup your Internet box connection, you check out this blog post.

You can have an evaluation of the latency between you and your correspondent by doing a mouse-over the Network icon. This will give you a value that you need to add to the Buffering value.

In the example below the total estimated latency is 24.2ms = 6.8ms + 17.4ms.

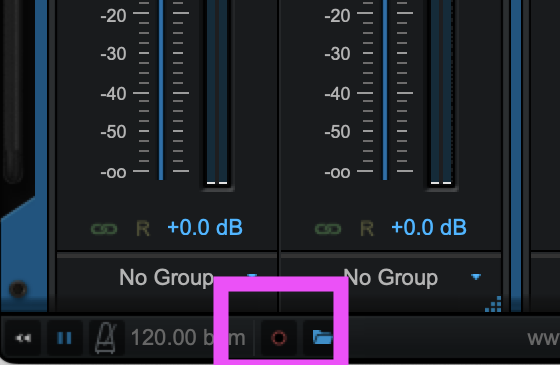

To record your jam session, you just need to click on the red circle in Fader Hub:

Enjoy!
