Description

Passive element (it does not respond to mouse or keyboard) that displays a image composed of 9 parts:

top_left

top

top_right

left

center

right

bottom_left

 bottom

 bottom_right

This enables this special image to be resized without stretching. That's the reason why it's named 'group box': it can be a cell that groups several widgets and offer a frame around those widgets, without having to bother about the size of these widgets.

Top, left, center, right and bottom images are tiled according to the size of the image set with the 'width' and 'height' attributes or computed from the children cells.

For more information about image files, see the Images section.

Inherited Attributes

See the Widgets element.

Specific Attributes

Name Value Type Default Value Description Comment V. Exp.

stretch

boolean

false

Enables or disables background image stretching (resize).

Instead of repeating the center, left, right, bottom and top images to cover the entire surface of the widget, these images will be stretched.

1.9

No

Images


image file path

empty

'virtual' path to the image to display.

This path is not used to load any image, but is used to generate automatically other image attributes in order to avoid to write 9 similar path. See examples below.

1.0

No

image_mask

image file path

'image' value with '_mask' postfix

'virtual' path to the alpha mask for the image.

This value is optional since by default it uses the same path as the 'image' attribute, to which it concatenates '_mask'.

Anyway this path is not used to load any image, but is used to generate automatically other image attributes in order to avoid to write 9 similar path. See examples below.

1.0

No

image_top_left

image file path

'image' value with 'top_left' postfix

Path to the image to display on the top left corner.

This value is optional since by default it is generated from 'image' attribute.

1.0

No

image_top_left_mask

image file path

'image_top_left' value with '_mask' postfix

Path to the alpha mask for the top left image.

This value is optional since by default it is generated from 'image_top_left'.

1.0

No

image_top

image file path

'image' value with '_top' postfix

Path to the image to display on the top.

This value is optional since by default it is generated from 'image' attribute.

1.0

No

image_top_mask

image file path

'image_top' value with '_mask' postfix

Path to the alpha mask for the top image.

This value is optional since by default it is generated from 'image_top'.

1.0

No

image_top_right

image file path

'image' value with 'top_right' postfix

Path to the image to display on the top right corner.

This value is optional since by default it is generated from 'image' attribute.

1.0

No

image_top_right_mask

image file path

'image_top_right' value with '_mask' postfix

Path to the alpha mask for the top right image.

This value is optional since by default it is generated from 'image_top_right'.

1.0

No

image_left

image file path

Image value with '_left' postfix

Path to the image to display on the left.

This value is optional since by default it is generated from 'image' attribute.

1.0

No

image_left_mask

image file path

image_left value with '_mask' postfix

Path to the alpha mask for the left image.

This value is optional since by default it is generated from image_left.

1.0

No

image_center

image file path

Image value with '_center' postfix

Path to the image to display in the center.

This value is optional since by default it is generated from 'image' attribute.

1.0

No

image_center_mask

image file path

image_center value with '_mask' postfix

Path to the alpha mask for the center image.

This value is optional since by default it is generated from image_center.

1.0

No

image_right

image file path

'image' value with 'right' postfix

Path to the image to display on the right.

This value is optional since by default it is generated from 'image' attribute.

1.0

No

image_right_mask

image file path

'image_right' value with '_mask' postfix

Path to the alpha mask for the right.

This value is optional since by default it is generated from 'image_right'.

1.0

No

image_bottom_left

image file path

'image' value with 'bottom_left' postfix

Path to the image to display on the bottom left corner.

This value is optional since by default it is generated from 'image' attribute.

1.0

No

image_bottom_left_mask

image file path

'image_bottom_left' value with '_mask' postfix

Path to the alpha mask for the bottom left image.

This value is optional since by default it is generated from 'image_bottom_left'.

1.0

No

image_bottom

image file path

'image' value with '_bottom' postfix

Path to the image to display on the bottom.

This value is optional since by default it is generated from 'image' attribute.

1.0

No

image_bottom_mask

image file path

'image_bottom' value with '_mask' postfix

Path to the alpha mask for the bottom image.

This value is optional since by default it is generated from 'image_bottom'.

1.0

No

image_bottom_right

image file path

'image' value with 'bottom_left' postfix

Path to the image to display on the bottom left corner.

This value is optional since by default it is generated from 'image' attribute.

1.0

No

image_bottom_right_mask

image file path

'image_bottom_right' value with '_mask' postfix

Path to the alpha mask for the bottom left image.

This value is optional since by default it is generated from 'image_bottom_right'.

1.0

No

Examples

You may want to have a look at the examples for the IMAGE widget, which is simpler than the IMAGE_GROUP_BOX but similar.

  • Display an IMAGE_GROUP_BOX with an arbitrary size, the skin using a wood texture as background:

<?xml version="1.0" encoding="utf-8" ?>
<SKIN language_version="1.0" background_image="bg.bmp" repeat="true">
   <IMAGE_GROUP_BOX image="box.bmp" width="130" height="40"></IMAGE_GROUP_BOX>
</SKIN>

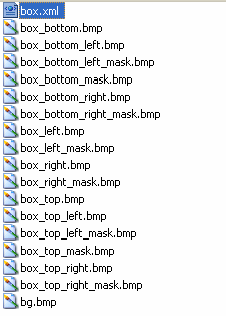

The folder contains the following files (there is no 'center' image in this example):

Notice the image pairs: (file.bmp / file_mask.bmp). The mask bitmap is the bitmap that contains the alpha channel for transparency. For more information please read the Images section.


IMAGE_GROUP_BOX images (transparency omitted)


  • We can now change the size of the group box:

<?xml version="1.0" encoding="utf-8" ?>
<SKIN language_version="1.0" background_image="bg.bmp" repeat="true" h_margin="10" v_margin="10">
   <IMAGE_GROUP_BOX image="box.bmp" height="80" width="300"></IMAGE_GROUP_BOX>
</SKIN>
  • If the size is not set, but the group box contains other widgets, the group box will adapt its size to its content and its layout properties (see the CELL element for more information about layout properties):

<?xml version="1.0" encoding="utf-8" ?>
<SKIN language_version="1.0" background_image="bg.bmp" repeat="true" h_margin="10" v_margin="10">
   <IMAGE_GROUP_BOX image="box.bmp" margin="8" spacing="2" layout_type="row">
      <IMAGE image="img.bmp" />
      <IMAGE image="img.bmp" />
      <IMAGE image="img.bmp" />
      <IMAGE image="img.bmp" />
   </IMAGE_GROUP_BOX>
</SKIN>
  • Here is another example with a simple 3D look and a 'center' image. Note that we have added a blank cell in the layout in order to increase blank space on the right, because the shadow zone would otherwise make the design look asymmetric.

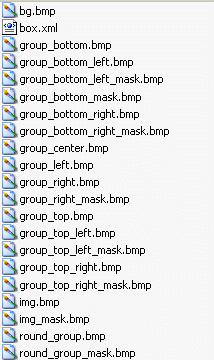

Note that some of the files for the group box (prefixed with 'group') do not have a corresponding mask file. This is because these images are totally opaque (the top, center and left, which do not have any shadow), so they do not need a transparency mask.


IMAGE_GROUP_BOX images

<?xml version="1.0" encoding="utf-8" ?>
<SKIN language_version="1.0" background_image="bg.bmp" repeat="true" h_margin="10" v_margin="10">
   <IMAGE_GROUP_BOX image="group.bmp" h_margin="12" v_margin="4" spacing="0" layout_type="row">
      <IMAGE image="img.bmp" />
      <IMAGE image="img.bmp" />
      <CELL width="10" />
   </IMAGE_GROUP_BOX>
</SKIN>

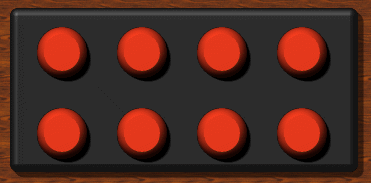

  • Again, if we add or remove objects inside the group box, it will adapt its size:

<?xml version="1.0" encoding="utf-8" ?>
<SKIN language_version="1.0" background_image="bg.bmp" repeat="true" h_margin="10" v_margin="10">
   <IMAGE_GROUP_BOX image="group.bmp" h_margin="12" v_margin="4" spacing="0" layout_type="column">
      <ROW>
         <IMAGE image="img.bmp" />
         <IMAGE image="img.bmp" />
         <IMAGE image="img.bmp" />
         <IMAGE image="img.bmp" />
         <CELL width="10" />
      </ROW>
      <ROW>
         <IMAGE image="img.bmp" />
         <IMAGE image="img.bmp" />
         <IMAGE image="img.bmp" />
         <IMAGE image="img.bmp" />
         <CELL width="10" />
      </ROW>
   </IMAGE_GROUP_BOX>
</SKIN>
