Blue Cat Audio Plug-ins Basics

This chapter describes the basic features that are common to all our plug-ins. If you are already familiar with our products, you can skip this part.

User Interface Basics

About Skins

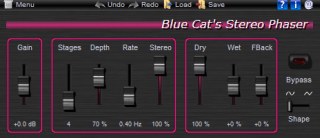

Like all Blue Cat Audio plug-ins, Blue Cat's Stereo Phaser uses a skinnable user interface. It means that the appearance and behavior of the user interface can be entirely customized.

Especially with third party skins, the experience may be quite different from the one offered by the default skins that we provide. However, our plug-ins and our skinning engine have several standard features that will be available whatever your favorite skin. This is what is described in this chapter.

More information about custom skins can be found in the skins section.

Main Toolbar and Menu

Menu

If you right click on the background of the plug-in, the following pop-up menu appears:

The description of the commands associated to each menu item are available below.

Toolbar

In some skins, an optional toolbar gives you access to the some of the functionalities of the main menu.

Icon	Name	Function
	Menu	Open the main menu
	Undo	Undo
	Redo	Redo
	Load	Load Preset
	Save	Save Preset
	Manual	User Manual
	About	About
	Website	Opens our website

Commands

The Commands available from the main menu or the toolbar are:

• Set Preset Skin: change the skin for the current preset.
• Use Global Skin: use the skin defined in the global settings for the current preset. This item is enabled only if a skin has been defined for the current preset.
• Undo/Redo: undo or redo the latest modifications. This includes all changes made to the current preset settings.
• Load Preset: load preset from file.
• Save Preset: save current preset to file.
• Presets Settings: open the presets settings window. It enables you to change the skin and MIDI settings for the current preset.
• Global Settings: open the global settings window. It enables you to change the skin and MIDI settings that are used by default in all instances of the plug-in.
• User Manual: open this user manual.
• Check Updates: check the updates for this software on our website.
• Get More Skins: get more skins for this software.
• About: displays the “about” dialog box.

MIDI control

Blue Cat's Stereo Phaser can also be remotely controlled via MIDI using MIDI CC ("Control Change") messages if your host application supports it. It is possible to customize the channel, control numbers and range used for each parameter in the MIDI settings panel available from the main menu (see the Plug-in Settings chapter for more details).

Controls

Examples

Here are a few examples of typical controls you will encounter in the user interface of our plug-ins:

slider	slider	knob	button	Text control

Interacting with Controls

You can interact with the controls of the plug-in interface either with the mouse or the keyboard.

Setting the keyboard focus on a control (so that it responds to key strokes) may be automatic (when you pass the mouse over it it gets focus) or manual (you have to click on the control to set the focus on it). Note that all host applications behave differently regarding keyboard handling. In some applications you may not be able to use all keys described later in this manual to interact with our plug-ins. It is usually made obvious to you to know the active surfaces of the skin (the places where you can click with the mouse): the mouse cursor usually changes when you can do something on a control. In the default skins delivered with the plug-in, the cursor changes to a small hand or an arrow to tell you when your mouse is over an active control.

Mouse

Various mouse movements will let you interact with the controls:

Mouse Interaction	Action
Left Click	Acquire focus and start dragging or push (button)
Left Click + Alt Key	Set the value to default
Left Double Click	Acquire focus and launch the “fine tuning” edit box (except button):
Right Click	Set the value to default
Mouse Wheel	Increment or decrement the position (focus required)
Mouse Drag	Change the control position depending on mouse movement (except button)

Keyboard

All control widgets support the following keys (note that some of them are caught by the host and thus never forwarded to the control. For example in Steinberg Cubase SX you cannot use the arrow keys to control the plug-in):

Keys Common to All Controls

Key	Action
Up Arrow	Small increment of the position (up or right)
Down Arrow	Small increment of the position (down or left)
Left Arrow	Same as Down Arrow
Right Arrow	Same as Up Arrow
Page Up	Large increment of the position (up or right)
Page Down	Large decrement of the position (down or left)
+	Small increment of the value of the control
-	Small decrement of the value of the control
d	Set to default value (same as mouse right click)
e	Opens the 'fine tuning' window to precisely set the parameter:
SHIFT	When the key is down, the fine tuning mode is on, and you can modify the value with better precision when moving the mouse, the mouse wheel or using the keyboard. Just release the key to get back to the normal mode.

Keys Specific to Buttons

More

Check our online tutorial for more screenshots and more examples of our plug-ins user interfaces.

Blue Cat's Stereo Phaser Parameters

All parameters described below can be automated and controlled via MIDI if your host application supports it. You can precisely define this behavior in the settings panels described later in this manual.

Param id	Name	Unit	Description
dsp.input0	Bypass		Bypass the effect.
dsp.input1	Gain	dB	Input gain.
dsp.input2	Dry	%	Amount of dry input signal.
dsp.input3	Wet	%	Amount of directly phased signal.
dsp.input4	Feedback	%	Amount of feedback. If you set this value to +/-100% the signal might increase until it clicks. A negative value means phase inversion for the feedback loop.
dsp.input5	Stages		Number of phasing stages.
dsp.input6	Depth	%	Depth of the phasing effect.
dsp.input7	Rate	Hz	Rate of the LFO.
dsp.input8	Shape		Selects one of the two available shapes for the LFO: sine (0) or triangle (1) waveform.
dsp.input9	Stereo	%	Amount of 'stereoness' of the effect. When set to zero, the resulting effect is mono (same effect for left and right channels)

Plug-in Settings

In addition to the controls offered in the main user interface, Blue Cat's Stereo Phaser has various settings that let you fine tune the behavior of the plug-in. You can choose to change these settings either for the current preset or globally for all instances of the plug-in.

The Global Settings Window

The settings available in this window apply to all instances of the plug-in, for all presets, if not overriden in the presets settings. Consider these settings as “default” settings.

Global Skin

You can change the default skin for all instances of the plug-in: write the skin file path in the text edit box or click on the button to open a file chooser dialog. If you have several instances of the plug-in opened in your session, you will have to re-open the user interfaces of these plug-ins to see the skin change.

Global MIDI Input Settings

For each parameter you can define a default MIDI channel and CC number. You can then control the plug-in with an external MIDI controller or one of our plug-ins that generate MIDI messages.

The following settings are available for each plug-in parameter:

• Channel: MIDI Channel for the parameter control. If set to 0, the plug-ins will accept Control Change Messages from all MIDI Channels (MIDI Omni mode).
• CC: Control Change Number.
• Learn: click on this button to activate the MIDI learn functionality. When it is activated, you can move your MIDI controller, and the plug-in will automatically set the MIDI Channel and CC Number.
• Enable MIDI: enable/disable the MIDI control of the parameter.
• Response: response curve of the MIDI control: from very fast to slow control.
• Min: minimal value of the parameter when MIDI controlled.
• Max: Maximum value of the parameter when MIDI controlled.

(generic screen shot, does not correspond to the actual plug-in parameters)

Note: if the Min value is higher than the Max value, the response curve will be reversed: increasing the control value will decrease the parameter value.

Note: if you double click on the parameter text control boxes for the max and min values, a “fine tuning” edit box will appear and let you change the min and max values with more precision:

The Current Preset Settings Window

In this window you can change the settings for the current preset of the current instance of the plug-in only.

Preset Skin

You can choose to use the global skin setting or to change the skin for the current preset. This way you can have different skins for different instances of the plug-in in the same session in order to differentiate them.

Preset MIDI Input Settings

Use the global settings or override them for the current preset. The parameters are the same as for the global input settings.

(generic screen shot, does not correspond to the actual plug-in parameters)

About Skins

Blue Cat's Stereo Phaser integrates Blue Cat's skinning engine that allows you to customize the user interface. You can download new skins for your plug-in at the following address:

http://www.bluecataudio.com/Skins/Product_StereoPhaser

If you don't find a skin that fits your need or if you want a really custom one, you can choose to create your own skin.

Changing the Skin

You have two ways to change the skin of your plug-in: you can change the default (or 'global') skin in the global settings, or change the skin for the current preset only (either in the preset settings page or from the main menu). The global skin applies to all plug-in instances, whereas the current preset skin only applies to the current preset of the current plug-in instance.

See the main menu for more information about how to access these options.

On some hosts the plug-in window won't resize automatically when you choose a skin with a different size. In this case, just close the window and re-open it: it will be displayed with the right size.

Create a Custom Skin

You can create custom skins for your plug-in in order to adapt it to your exact needs. You can change its look and feel and make it completely integrated in your virtual studio!

Just read the Blue Cat's Skinning Language manual and download the samples for the tutorial on http://www.bluecataudio.com/Skins. You can get ready to create your own skins in a few minutes.

You can then share your skins on our website.

FAQ

Plug-ins Formats

What are DirectX (DX), Audio Unit (AU), RTAS, AAX and VST plug-ins?

VST, Audio Unit, RTAS, AAX and DirectX plug-ins are software components than can be used in "Host" Software (such as Cakewalk Sonar, Steinberg Cubase or Wavelab, Sony Vegas, Logic Pro, Garage Band, Ableton Live, Pro Tools...) in order to perform some MIDI and/Or Audio real-time Processing tasks. To be more precise what we usually call directX plug-ins is actually a "DirectShow Filter". VST is owned by Steinberg, DirectX by Microsoft while Audio Units is the property of Apple Computers and RTAS and AAX are owned by AVID.

How can I use your plug-ins?

Download and install a host software, then download and install the plug-ins from our page. They will appear in the host "effects" menu. If you are using a DirectX host with our MIDI controllable plug-ins and they do not show up in you host list, you might need to use our freeware DXi Manager. Note that our plug-ins are sometimes shown in the "MIDI controllable audio effects" or "soft synths" sections in some host applications.

Where can I find a host?

There are many commercial or freeware hosts that will suit your needs. You can find a long list of applications here. You can also use demos of Cubase, Wavelab, Ableton Live, Tracktion, or Sonar software, which are usually available on the companies websites. On the Mac, Garage Band is part of the system and can be also used to host our Audio Unit plug-ins.

What are the main differences between DX, VST, RTAS, AAX and Audio Units?

VST is a protocol that works on several platforms (Mainly Windows, MacOS, BeOS, and some Linux platforms use it as well) whereas DirectX is Microsoft Windows only, and Audio Units are available only on the Mac. RTAS and AAX are available on Mac and PC, but only for Pro Tools products (AVID). AAX plug-ins are compatible with Pro Tools 10 and higher, whereas RTAS versions are compatible for Pro Tools 10 and lower versions.

What is the difference between DXi and DX effects?

DXi effects are MIDI controllable DirectX plug-ins. It's the same as DX effects plus MIDI control.

Which version (VST, Audio Unit, RTAS or DX) should I use in my host application?

Here is a list of host software and the version we recommend you to use. Many other applications are supported, check your application user manual to choose the best version (AU stands for "Audio Unit" and DX for "DirectX"):

Host Application	Plug-in Version
Cakewalk Products (Sonar, Project5...)	DX
Sony Products (Vegas, ACID, Soundforge)	DX for old versions, VST for new
Steinberg Products (Cubase, Nuendo, Wavelab)	VST (Mac or PC)
Ableton Live	VST (Mac or PC)
Adobe Audition	any
EnergyXT	VST
Magix Samplitude	VST
Avid (Digidesign) Pro Tools	RTAS
Apple applications (Logic Pro, Logic Express, Garage Band...)	AU
Cockos Reaper	VST (Mac or PC)
...

In general, we recommend using VST over Audio Unit on Mac (when both are supported), particularly for the plug-ins that can output automation or MIDI CC messages.

Where can I find more information about this topic?

• www.steinberg.net
• www.microsoft.com
• www.kvraudio.com
• www.apple.com
• www.digidesign.com

Installation

I have installed my software and it is not listed as an application. Why? What can I do? How can I launch it?

Most software you can purchase on this website is plug-ins for host applications. It means you need another application to use it. See the "Plug-ins Formats" section in this FAQ for more information.

I have installed my plug-in and it does not show up in my host application. What can I do?

First check that you application supports DirectX, Audio Unit or VST plug-ins.

If you are using the DirectX version, check that your host application supports DXi plug-ins (MIDI enabled DirectX plug-ins). If it does not, it may remove it from the DirectX plug-ins list (some applications such as Sony Vegas 5 and Cool Edit Pro are known to do this). In this case, use our DXi Manager free utility and disable the MIDI capabilities of the plug-in. You may need to reinstall the software again before it shows up into your host application. For more information about this topic please read our DXi in Sony Vegas tutorial (it is applicable to other applications than Sony Vegas).

If you are using the Direct X version and your host application supports DXi, check that the plug-in does not appear in the 'virtual synth' or 'synthesizers' category. If you wish not to use the MIDI capabilities of the plug-in and use it as a regular Direct X plug-in, you can download the freeware DXi Manager and disable the MIDI capabilities of the plug-in.

I have installed my plug-in on windows 64-bit, checked the items above, and it still does not show up in my host application. What can I do?

You are probably running a 32-bit application. If that's the case, you need to install the 32-bit version of the plug-in: the choice for 32 or 64-bit is not determined by the operating system (64-bit windows can run both 32 and 64-bit applications), but by the host application that you are using.

Why are there two plug-ins called xxxx(Mono) and xxxx(Stereo) installed ?

"Mono effects" (which are effects that do not make any difference between left and right channels) are bundled this way for performance reasons. Some developers just deliver a stereo Version which also processes (twice) mono streams. The "(Mono)" plug-in is to be used with mono streams, and the (Stereo) one with stereo streams. The effect itself is the same in both cases but the number of processed channels is different: this may drastically improve performance for CPU intensive plug-ins.

How do I uninstall my plug-ins?

Open the Windows configuration panel/ Add Remove Programs, and choose 'Remove' on the corresponding plug-in. If you have installed the VST plug-in zip file version, just delete the corresponding dlls.

Why do your plug-ins need an installer on Windows? Do they modify the registry or system settings? Why not providing just a dll?

Our plug-ins require several additional files for default settings, skins and miscellaneous data. We provide an installer for our customers' convenience. Our installers do not modify the system settings or the Windows registry, except for the DirectX versions registration. Our installers won't harm your system.

Software Version

How do I know the version of the plug-in I am using?

You can see the version information in the about box: right click on the background of the plug-in user interface and select "About". The product version is also available in the Windows Add/Remove Programs Window.

Why do newer versions of a plug-in override older ones (they have exact same name and IDs)?

Because newer versions improve previous ones. When a new version is released, older versions are not supported anymore. In some cases the new versions may be installed as new products (compatibility reasons, major changes...), but it is explicitly documented on the product page.

A new minor version of a product I purchased some time ago is available. Where can I download the update?

The new version can be downloaded from the same place where you downloaded the original version. All information is contained in the email you received when you purchased the product. Your registration number has not changed either.

Upgrade

A new minor version of my plug-in has been released. Where can I download it?

When you purchased the plug-in, an email containing the information to download and register your software has been sent to you. You can download the new version from the exact same location as the first time.

I have downloaded a new version, do I need to uninstall the previous version?

No, you don't, except if it's specified on the product page, in the "history" section. Just run the installer and it will upgrade your software.

Automation

What is "Parameters Automation"?

The parameters of an effect can be automated in most host software. It means that you can record the changes you do during playback or recording so that it's replayed when playing back again. It's a way of sequencing parameters changes the same way you do with Audio or MIDI data.

What is "Smooth Update"?

When changing parameter values in real time or replaying a song where parameters have been automated, our plug-ins compute intermediate values between parameter changes in order to avoid "clicks" and "pops" that may occur otherwise. It results in a non audible smooth parameters update and lets you freely use automation or MIDI control to change the effects in a song.

Do your plug-ins support MIDI Control?

Yes they do. They offer precise control over the mapping of MIDI Control Change (CC) messages to parameter values: you can adjust both the channel and CC number as well as the response curve of the control. Since some of our plug-ins are also capable of creating MIDI CC from the audio signal, they can all be connected for real time signal-dependent audio effects. See our MIDI Control in Sonar tutorial for an example.

More...

This manual only covers the basics of Blue Cat's Stereo Phaser. Our website offers many additional resources for your Blue Cat's Stereo Phaser plug-in and is constantly updated, so keep an eye on it! You will find below a few examples of available resources.

Extra Skins

We encourage our customers to propose their own skins for our products and we often propose alternative skins to let you choose the one that best suits your needs. You can check Blue Cat's Stereo Phaser skins page to get the latest skins.

There were no extra skins for Blue Cat's Stereo Phaser when initially released. Please check the skins page to see if new skins are now available.

Tutorials

Many Tutorials are available on our website. They cover a wide range of topics and host applications. You will find below a list of tutorials that are related to the Blue Cat's Stereo Phaser plug-in. An updated list is also available online.

Updates

As you can see in the history log below, we care about constantly updating our products in order to give you the latest technology available. Please visit our website often to check if Blue Cat's Stereo Phaser has been updated, or subscribe to our Newsletter to be informed of the latest news about our products.

Versions History

V2.51 (2011/02/10)

Fixed keyboard focus stealing issue in Pro Tools and several other host applications. 64-bit Mac VST support.

V2.5 (2010/06/02)

RTAS plugin format support for Pro Tools (Mac and Windows). 64-bit applications support for Windows DX and VST under Windows x64. Mac AU 64-bit format support (compatible with 64-bit Logic 9.1 on Snow Leopard) Space bar does not trigger plug-in buttons anymore (avoids conflict with transport control in most applications). Demo version now displays a nag screen only once per session, and only when opening the user interface of the plug-in. Fixed MIDI learn issues. Performance inprovements (processing and user interface). Mac: fixed user interface crashes in some hosts under Snow Leopard. Mac: fixed keyboard/mouse focus issues in some hosts. Mac: fixed multiple screens issue. Mac-AU: fixed user interface resizing issue when changing skin in some hosts (Logic). Mac-AU: fixed settings lost issue when doing offline rendering in some applications. Mac AU: output parameters routing now works for more than one instance in Logic Pro's Environment. Mac AU: fixed output parameters that could exceed defined range and not record properly as automation curves.

V2.41 (2009/05/05)

Mac VST update: fixed incompatibility issues with Cubase 5 on Mac.

V2.4 (2009/04/01)

Mac Audio Unit support. Mac VST Support. New Windows installer (you should uninstall any previous version before installing this new one). New documentation. Minor user interfaces changes.

V2.3 (2008/08/25)

Undo/Redo. Load/Save presets in a host-independent format: you can now share presets between the directX and VST versions. New toolbar to access main functionalities. Smooth Bypass: activate/deactivate the plugin with absolutely no noise. Misc user interface enhancements. Improved parameters display in host application and settings window. Installer now registers the VST plugin to avoid registration issues in some host applications. Performance improvements: Faster skin loading. Reduced memory consumption when several instances are loaded.

V2.2 (2006/11/29)

Now supports Blue Cat's Skinnning language 1.2.4. Parameters can be fine tuned when the shift key is down. CPU efficiency improvement: no processing occurs when input is silent. Settings window now loads faster. (Bug fix): in some plug-in adapters (such as FxPansion's VST to RTAS adapter) the GUI did not display properly when first loaded. (Bug fix): when reinstalling the software in another directory, the "skin not found" message was displayed.

V2.1 (2006/09/27)

Minor UI enhancement for hosts not supporting Windows XP Theme. (Bug fix): presets load/save did not always work properly in Sonar 5 for some european versions of Windows XP.

V2.0 (2006/09/20)

Brand new skinnable graphic user interface using Blue Cat's skinning language v1.2.2. Advanced MIDI control with customizable parameters curve response and MIDI learn. All parameters can now be fine tuned thanks to a text-edit popup window that appears when double clicking on user interface widgets. User Manual accessible from plug-in UI. Warning: because it now supports MIDI events, the DirectX plug-in may appear in the "Synth" or "DXi" category instead of "effects" in some hosts (such as Cakewalk Sonar). If it does not appear in you host, you might want to use our DXi Manager to de-activate MIDI features. Warning: this new version breaks the presets compatibility, and is thus installed as a new plug-in. If you have a previous version installed and do not want to keep it, just uninstall it manually.

V1.4 (2005/02/01)

Demo version available. Now shows version information when clicking on the logo. DX version fix: host may crash when stopping playback and effect bypassed. DX version fix: Cakewalk Sonar crashes when loading custom presets.

V1.0 (2005/01/10)

First version.
